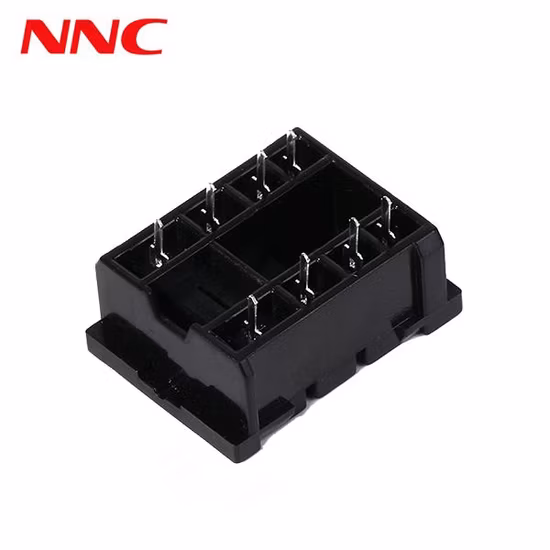

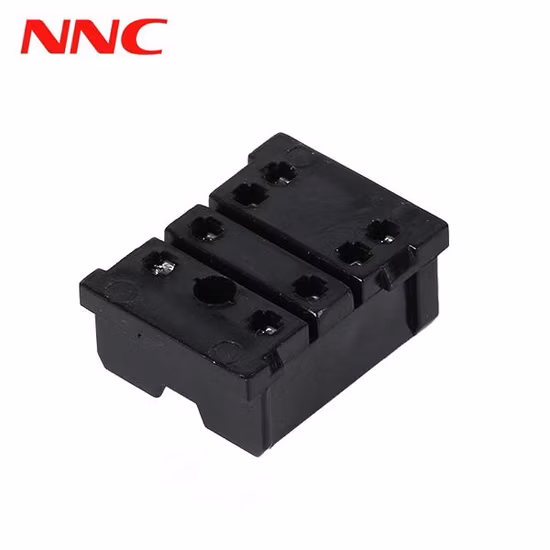

Relay Socket 18F2CA2 6.5A 10A 300V 68B

Basic Info.

Model NO.	18F2CA2
Load Voltage	300V
Certificition	UL
Medium Pressure	2500V/S
Load Current	6.5A 10A
Color	black
Transport Package	Carton
Specification	29mm*21.7mm*11.8mm
Trademark	NNC
Origin	China
HS Code	8538900000
Production Capacity	500000PCS/Week

Product Description

Specifacation

Model		18F2CA2
Rated current		7A
Rated voltage		300V
Dielectrics withstand voltage		2500V/S
Ambient temperature		-40ºC ~75ºC
Material		Flame retardant -PA46-S250F6(V0)
Material of clip clutch		QSn6.5-0.1
Installation		PCB
Accessories		/
Module		/
Weight		Approx. 7g/PCS
Packing	Carton with paper box inside	1400PCS/Carton, G.W.: 11KG, N.W.: 10KG, Dimension(mm): 325×230×380

Wiring Diagram
