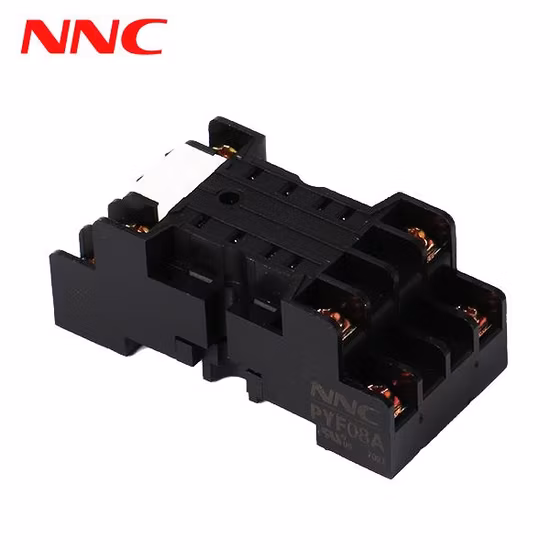

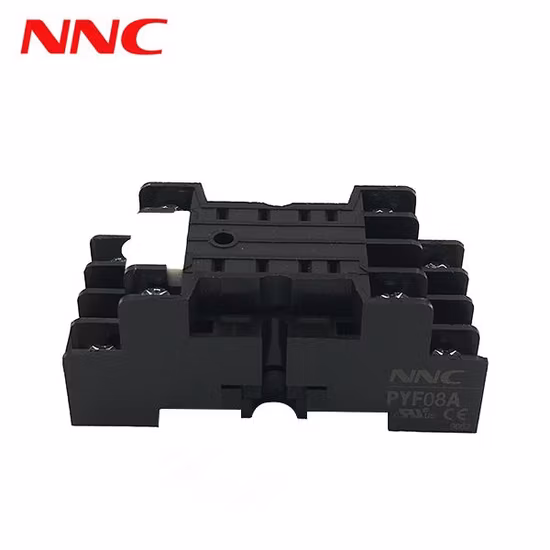

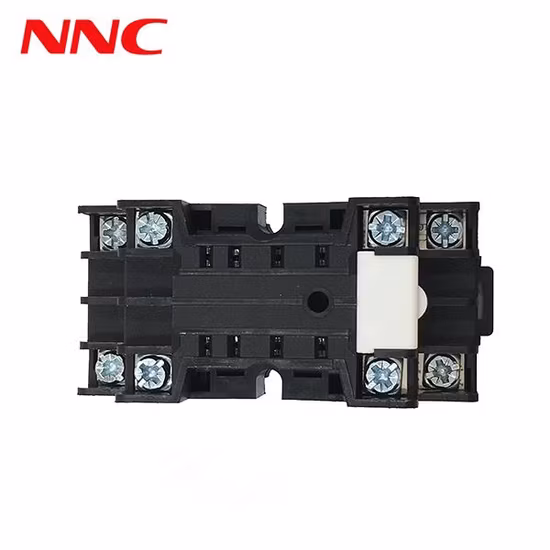

Power Relay Socket PYF08A, electric components 52P relay base

Basic Info.

Model NO.	PYF08A
Load Voltage	300V
Medium Pressure	2500V/S
Load Current	10A
Color	black
Transport Package	Carton
Specification	73.15mm*32mm*22mm
Trademark	NNC
Origin	China
HS Code	8538900000
Production Capacity	500000PCS/Week

Product Description

Specifacation

Module		PYF08A
Rated current		10A
Rated voltage		300V
Dielectrics withstand voltage		2500V/S
Ambient temperature		-40ºC ~75ºC
Material		Flame retardant -PA66+GF(V1/V0)
Material of clip clutch		QSn6.5-0.1
Installation		Standard guide rail, Screw
Accessories		/
Module		/
Weight		Approx. 49g/PCS
Packing	Carton with paper box inside	400PCS/Carton, G.W.: 22KG, N.W.: 21KG, Dimension(mm): 340×320×400

Wiring Diagram

Clion Electric Co.,Ltd,established in 2003,is one of the leading industrial control component manufacturers in China.We provide a wide variety of industrial control components including: numerous types of relays (such as time relay, electromagnetic relay, solid state relay etc.),sensors, rotary encoders,switches (micro switch,limit switch,push button switch etc.) and other distribution control products,such as surge protective device,dual power automatic transfer switches,circuit breakers,etc. We imported the most advanced production technology and equipment from around the world. We provide high quality products with the lowest prices, and now our annual output reach 80million. Under the ISO9001:2000 ,ISO 14001:2004,OHSAS18001 management system, Clion has obtained CCC,CQC,CE,UL and TUV certificates for our products which passed the ROHS testing.Due to the product quality,as well as excellent customer service,the products are sold well all over the mainland China and exported to the country as the west,the middle east and the southeast Asia . To achieve the sustainable development in the increasingly fierce global market, Clion will insist on the management idea:Integrity,Beyond, to provide the high cost performance product, superior after-sale service and rapid delivery to meet the requirement of all the worldwide customers.

Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.

Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.

Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)

Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.

Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.

Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.

Q7: What is your warranty time of the products?
A7: 12-24 months
